What is a design basis for holes on an uniform flow support plate inside Tank? Please provide an example of a reference scheme.
whatsminer
2026.02.05
4
0

Allocate flow based on thermal difference between a PCB area and t power supply area (with a flow proportion of the power supply area being 5-10%).

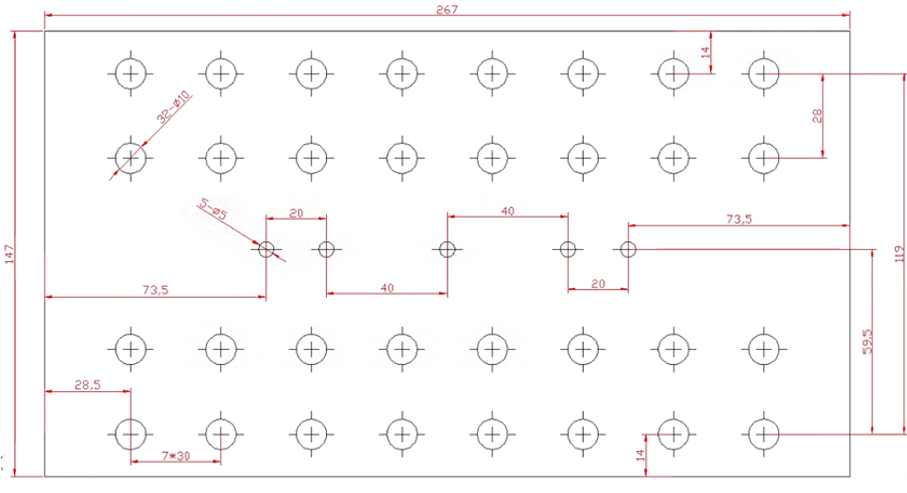

Example: The first type is "8 Φ10 holes for large heat dissipation area on PCB & 8 Φ10 holes for small heat dissipation area on PCB & 5 Φ5 holes for power supply area"


Figure 1-1
