WhatsMiner D Series is a standard hydro-cooling model built for high-density and stable operation scenarios. With fixed power, standardized hydro-cooling, and high cost-performance, it is a preferred solution for large-scale hydro-cooling deployment. Paired with HeatCore XS2400 container, it enables one-stop efficient implementation.

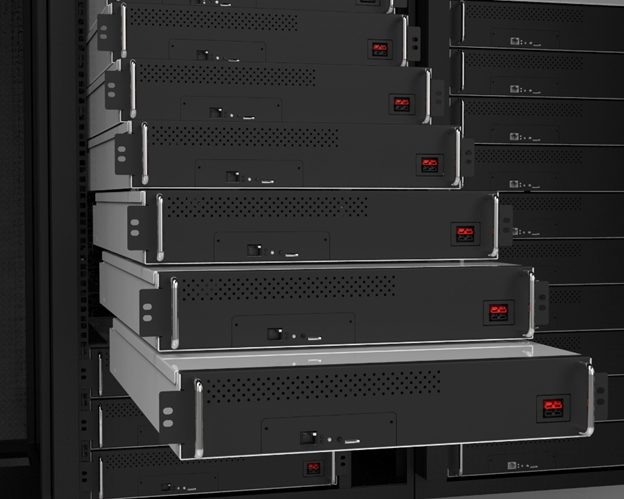

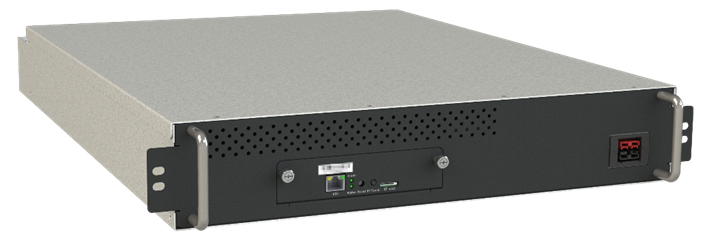

Appearance

I. Models and Core Specifications of D Series Miners

All D Series server models adopt hydro-cooling design, fixed 9200W power, no overclocking support, and a maximum outlet temperature of 65℃. They feature low power ratio, high hashrate, and long-term stable operation.

II. Core Features of D Series Miners

1. Precise Liquid Temperature Control

The D Series miner adheres to strict liquid temperature specifications to ensure stable operation and environmental adaptability:

• Normal operating inlet temperature: 25℃~50℃

• Inlet temperature control accuracy: ±2℃

• Storage and transportation temperature: -40℃~+70℃

• Inlet liquid temperature: ≤50℃

• Outlet liquid temperature: ≤65℃

2. Fixed Power, No Overclocking

Rated power of 9200 W with no overclocking support. It runs stably at full load upon startup without parameter debugging, reducing operation and maintenance complexity.

3. Lower Cost Per Terabyte

At the same hashrate, it offers a more competitive procurement price per tera-hash, making large-scale investment more cost-effective.

4. Long Term Stable Operation

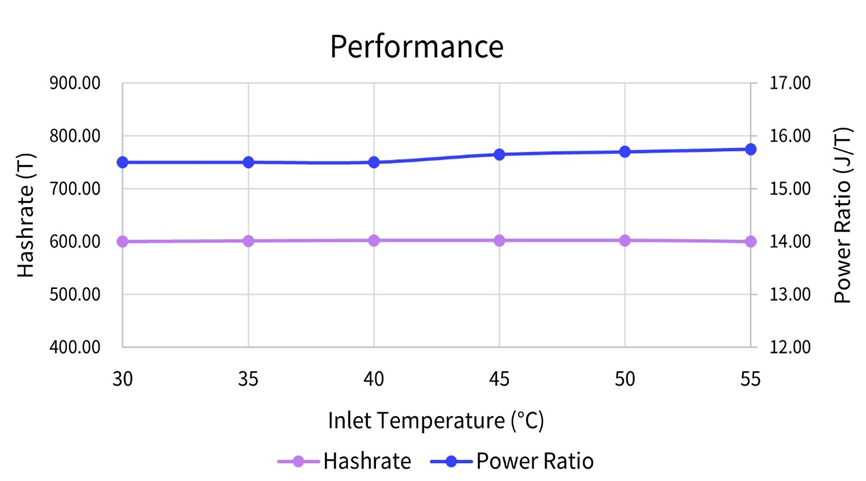

It maintains stable hashrate and constant power ratio in a standard hydro-cooling environment, with no hashrate fluctuations or abnormal power ratio. It is suitable for 7×24-hour uninterrupted operation. The performance chart of M6DS++ shows extremely stable power ratio and hashrate.

III. Official Recommended Solution: M6DS++ + HeatCore XS2400 Container Integrated Deployment

Hydro-cooling miners must be used with professional hydro-cooling infrastructure. We officially recommend M6DS++ and HeatCore XS2400 container integrated solution with outstanding advantages:

• Factory prefabrication, rapid deployment: 40 HQ standardized module with fully pre-installed power, hydro- cooling, network, and cabinets, plug-and-play on site.

• High-density hosting: A single container can accommodate 240 D-Series servers, with a maximum IT load of 2.4MW.

• High efficiency and energy saving, lower PUE: Closed-loop hydro-cooling + dry cooler, zero water consumption for heat dissipation, annual maximum PUE below 1.05.

• Intelligent management and control: Cloud remote monitoring, real-time viewing of water temperature, power, and operating status, automatic fault alarm.

• Safety and reliability: Leakage-proof, shockproof, anti-corrosion, suitable for both outdoor and indoor deployment.

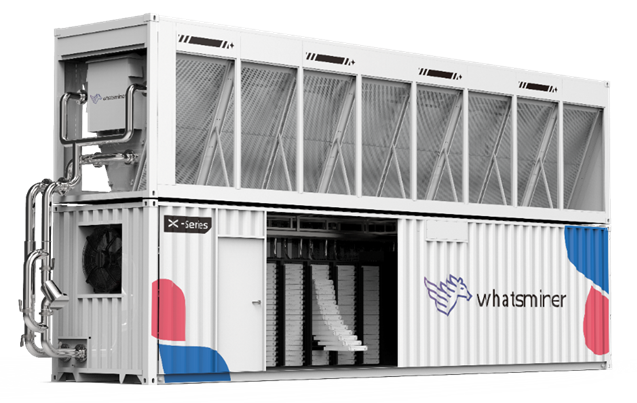

IV. HeatCore XS2400 Container: Core Specifications and Composition

1. Core Specifications

2. Internal Structure

The XS2400 adopts a modular prefabricated design with the following core components:

• Container: 40HQ insulated container with CCS certification, integrated with lighting, monitoring, alarm, and emergency stop devices.

• Power Distribution: 2 sets of 2500A power distribution panels for power distribution, metering, and overload protection.

• IT Cabinets: 12 groups of cabinets with 240 miner slots, built-in switches, PDUs, and hydro-cooling pipelines.

• Control System: PLC + industrial computer and other components to realize equipment linkage control and status monitoring.

• Hydro-Cooling CDU: Prefabricated hydro-cooling system supporting automatic water replenishment, water leakage detection, and remote monitoring to ensure stable heat dissipation.

In summary, the Whatsminer D Series hydro-cooling miner has core advantages of precise liquid temperature control, fixed 9200W power, no overclocking, high stability, and high cost-performance, balancing low power ratio and high hashrate. Paired with a M6DS++ + HeatCore XS2400 container integrated solution, it enables fast, efficient, and low-cost large-scale deployment, making it an ideal choice for users pursuing stability and cost-performance.

For more details about the server and container, please visit the following links:

① Whatsminer Manual:

https://www.whatsminer.com/src/views/product_manual.html

② HeatCore XS2400:

https://aws-microbt-com-bucket.s3.us-west-2.amazonaws.com/HeatCore%20XS2400%20Product%20Specification%20V3.2_1773397642643.pdf
